high speed continuous vffs form fill seal packing machine

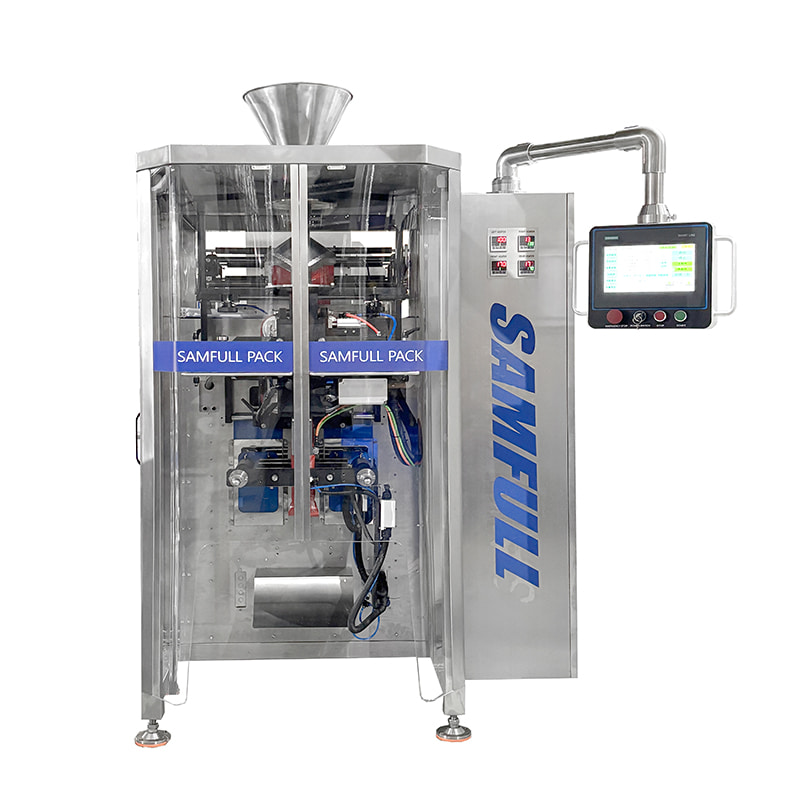

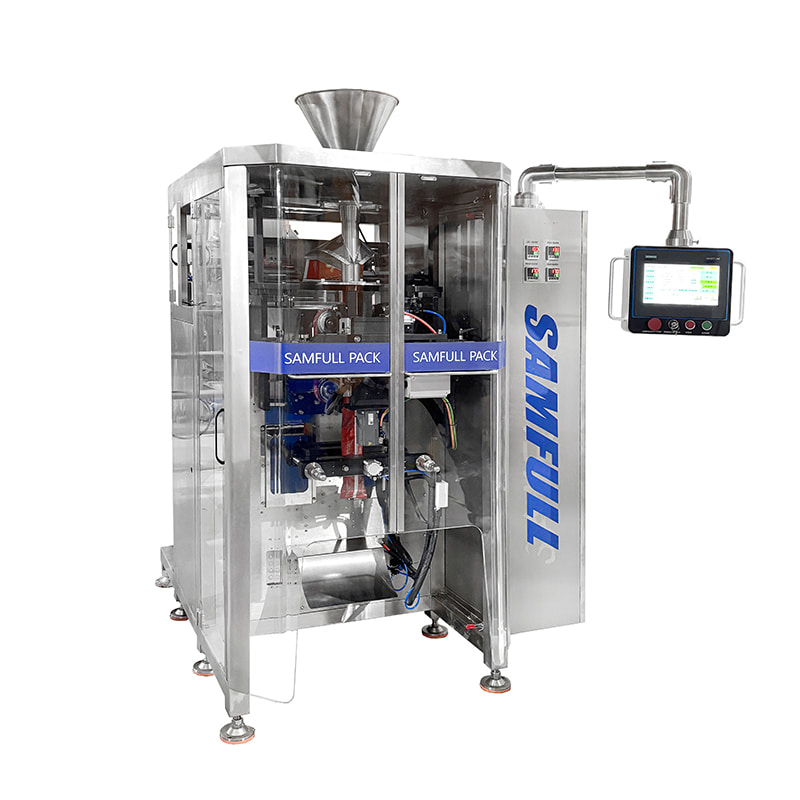

Full Servo Driving High Speed VFFS Packing Machine

The Full Servo Driving High Speed VFFS Packing Machine is an advanced vertical form-fill-seal solution designed for high-efficiency, high-precision packaging applications. Driven entirely by independent servo motors, the machine delivers superior speed stability, accurate motion control, and excellent packaging consistency, making it ideal for continuous industrial production environments.

Inquire Now Email Us

Videos

High speed continuous vffs machine for snack food

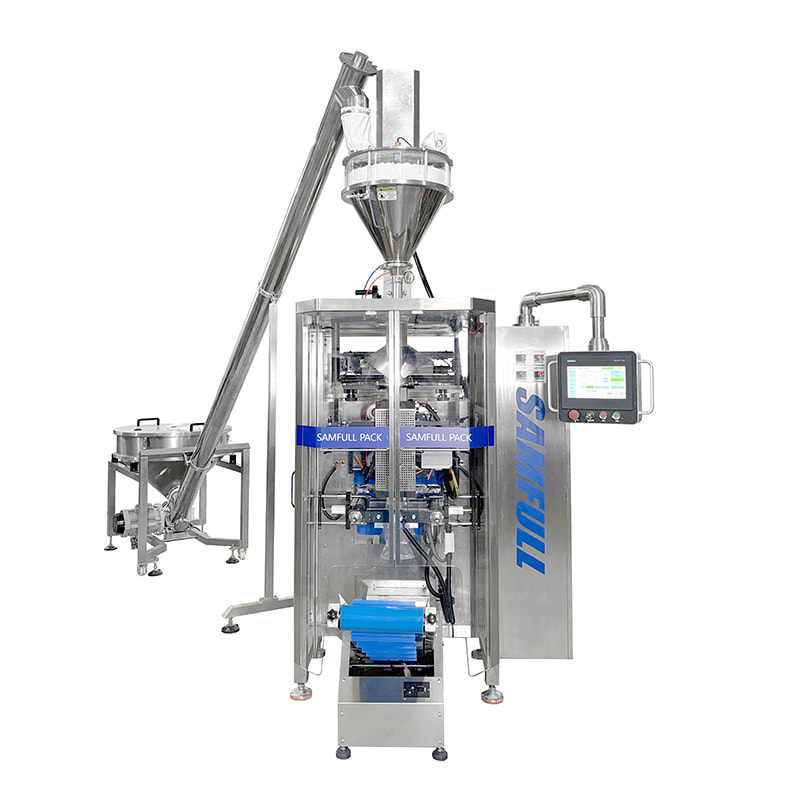

Powder auger filling and packing high speed

Features

The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical Gmp health standards;

Equipped with safety protection, in line with the requirements of enterprise safety management;

Adopt independent temperature control system, temperature control is accurate, ensure the sealing is beautiful and smooth;

Servo motor film drawing, PLC control, touch screen control, automatic control ability ofthe whole machine, high reliability and intelligence,high speed, high efficiency!

Double belt film drawing, film drawing sytem and color code controlsystem can be automaicaly adjusted by touch screen, simple operaionfor sealing and notching correction.

The touch scren can store a variety of packaging process parameters of diferent products,and can be used atany time without adjustmentwhen replacing products.

The machine is equipped with fault display system, which can help troubleshoot in time and reduce the requirement for manual operation;

The whole set of equipment includes the whole packaging process from materialconveying, metering, prining, bag-making, filling, sealing, cuting and product conveying;

It can be made into pillow bags, gusset bags, hanging bags, and string bags according to customer needs.

The machine adopts closed Struture to prevent dust from entering the machine effectively.

Options

1. Inspection & Quality Control

Checkweigher

Metal Detector

X-ray Inspection System

Automatic Reject Device

2. Bag Handling & Conveying

Discharge Conveyor

Cooling / Air Conveyor for hot-sealed bags

Automatic Bag Flattening System

Bag Shaping / Forming Unit

3. Vacuum Packaging Options

In-line Vacuum Chamber System
For vacuuming finished bags before final sealing.

Nitrogen Flushing System (MAP)
Modified Atmosphere Packaging for maintaining freshness.

Vacuum + Nitrogen Combination
Used for coffee, nuts, and high-value food products.

4. Coffee Degassing Valve Solutions

Automatic Degassing Valve Applicator
Automatically applies one-way valves on bags (for roasted coffee beans).

Integrated Degassing Valve Feeding System
Ensures stable valve supply at high speeds.

Coffee-Specific Gas Flushing Calibration
Designed for coffee aroma retention and extended shelf-life.

5. Robotic Arm Applications

Robotic Bag Sorting

Robotic Pick-and-Place to Cartoner / Case Packer

Robotic Grouping / Stacking

Robotic Loading into Boxes, Trays, Buckets

Robotic Transfer to End-of-Line Equipment

6. Secondary Packaging

A. Bag-in-Bag Packaging

Automatic Bag-in-Bag Machine

Secondary VFFS or HFFS Machine

B. Cartoning Line

Carton Erector

Vertical/Horizontal Cartoner

Robotic Carton Loading

C. Bottle / Can / Jar Filling

Automatic Filling System

Capping, Sealing, Labeling

7. End-of-Line Automation

Case Erector

Case Packer (robotic/top-load/side-load)

Case Sealer

Robotic Palletizer (4/6-axis)

8. Coding & Labeling

Coding/printing system (inkjet printer, thermal printer, laser coder)

Automatic Labeler

9. Front-end Feeding & Preparation System

Powder Mixing Machine

Screw Conveyor / Auger Feeder
Bucket Elevator / Z-type Conveyor

Vibratory Feeder

Vacuum feeder

Technical Specification

Model	SF-2.0GT
Bag sizes	L 100-400mm W 80-250mm
Packing speed	50-150bags/min
Measuring range	100-1000ml
Packing material	PET/VMPET/PE
Consumption	0.65 m3 /min
Power and voltage	110/220/380V, 50-60HZ, 3KW
Machine dimension	L 1080 * W 1300 * H 1400 mm
